OsteoSys Excellus DXA Half Body

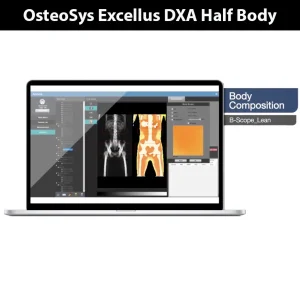

OsteoSys Excellus DXA is a half body fan beam Dual X-ray Absorptiometry (DXA) device, which is designed under the new concept of a body composition analyzer capable of measuring the BMD (Bone Mineral Density) and analyzing a half body composition.

Swing Arm

You can install the OsteoSys Excellus DXA as a normal table for ultrasound scanner or use it in a chest X-ray room by utilizing its swing arm function.

Compact Design

The OsteoSys Excellus DXA  has a compact, sophisticated and refined design.

Technical specifications

• Measurement Type: Half body DXA (Half body Composition and assessment)
• Measurement Method: Narrow fan beam
• Scan site: Half body, AP spine, Femur(Dual femur), Forearm, Lateral spine, LVA(VFA)
• Scan area: 800 ×480mm
• Scan time:
  • AP spine – 23Sec. (± 2Sec.)
  • Femur – 19Sec. (± 2Sec.)
  • Forearm – 18Sec. (± 2Sec.)
  • Half body – 3Min. 30Sec. (± 2Sec.)
• Special feature
  • Automatic real one-scan
  • Swing arm
• Reproducibility: ≤ 1.0% CV
• Measured parameter BMD, BMC, BMI, T-score, Z-score, Area, Half body BMD, Body Composition(Fat/Lean/BMC), HA(Hip Analysis), Dual femur
  Orthopedics / Pediatrics / B-Scope(body-Scope) / FRAX / Color mapping / Trend report / DICOM & PACS
• Dimension (W)1900mm × (D)800mm × (H)1230mm
• Table height 650mm
• Weight 160kg
• Power consumption 110VAC / 220VAC(+/- 10%).
