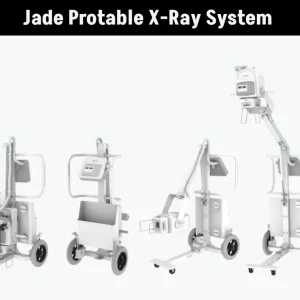

DRGEM Jade Portable X-Ray System

JADE is an innovative, highly versatile portable x-ray system suitable for a variety of clinical uses.

Utilising the unique technology used in DRGEM’s universally recognized x-ray generators, JADE is a compact but powerful unit with a 4kW output and thoughtfully designed components to increase efficiency and maximize workflow.

The core part of x-ray source adopts high quality tube assembly, x-ray collimator and high frequency x-ray generator with excellent performance, durability, and stability.

Convenient and intuitive operation

JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units, and in veterinary fields.

With a simple, easy-to-use operator console, three-way control, two-step foldable stand, and auto lock system, JADE is a user-friendly portable x-ray system.

Features

• 4kW, 100kHz, high frequency X-ray Generator
• Maximum 120kVp / 0.1-250mAs
• 330-2,000mm FD
• 53.5kg including X-ray unit, collimator and stand
• Maximum height of 228.6cm
• Collimator with 30 second LED lamp timer
• Exposure Hand Switch
• Foldable, two-step stand
• Vehicle loadable
• Wheel lock
• Automatic tube arm lock at any angle
• Storage space for cassettes or detectors
• User Programmable APR, save up to 9 APR settings

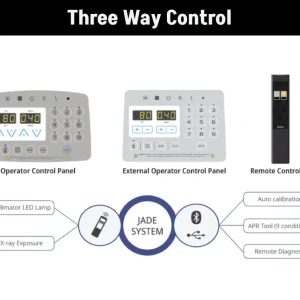

• Three way X-ray exposure
• USB interface & Bluetooth
• Remote control (Option)
